Waldent V-Light ECO X-Ray Machine

• The unit is an advanced high-frequency field dental x-ray device rated at 60kV DC and 2 mA tube current. It has inverter X-ray control methods for producing tooth and maxillary bone images for both chemical film and digital sensors in high quality. The unit operates on a 22.2VDC supplied by a rechargeable LiPolymer battery pack. When radiographs are to be taken, the device can either be handheld or mounted on a tripod.

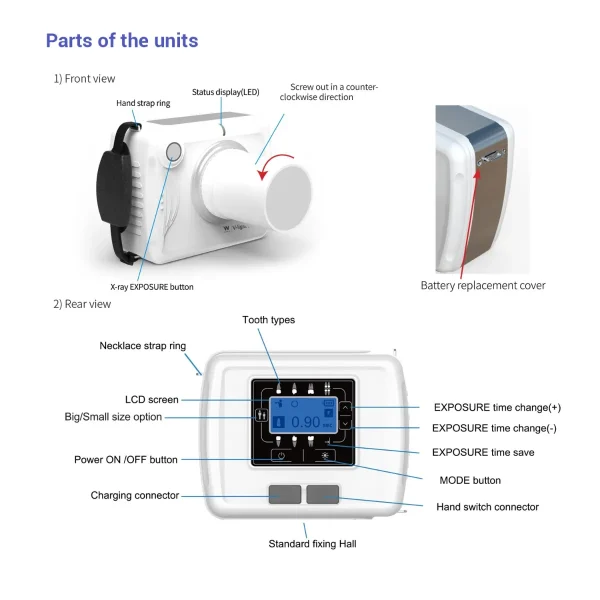

Functional Explanation:

Status Display on the LED:

• LED color changing: Unit status display
• Off ⇒ Turn off
• Green ⇒ Standby for shot
• Yellow ⇒ Exposing X-ray
• Red ⇒ Unit error

X-ray EXPOSURE button:

• It makes use of X-ray EXPOSURE.
• If you press the button 2 seconds more, it will expose for the set time.
• If you release the button before 2 seconds, it occurs a unit error.

X-ray Exposure cone:

• We made the inside of the cone with lead, it prevents from exposing the X-ray
  to the user.

Hand strap ring:

• The top and bottom rings are connected with a hand strap.

Necklace strap ring:

• It is for connecting with the necklace strap.

Big/Small size option:

• Press the key to show the size option on the screen.

Power ON /OFF button:

• It is a button for turning on (or turning off) the unit.

Changing exposure time up (+):

• When presses the button, the exposure time will be increased.

Changing exposure time down (-):

• When presses the button, the exposure time will be decreased.

User’s MODE button:

• If the user wants to change the set item, press the button and you can enter
  the set item area.

Saving exposure time:

• If you press the button 2 seconds more, the exposure time is stored.

Charging connector:

• The connector is for the purpose of charging the battery.

Hand Switch connector:

• The connector is for the purpose of connecting with a hand switch.

Tooth type of exposure object:

• They are buttons for selecting tooth of the exposure object.

LCD screen:

• It is displayed the unit’s status and information.

Standard fixing Hall:

• The hall is for the purpose of use with a tripod.

Battery replacement cover:

• The cover is used for battery protection and replacement.
